Outdoor Fire Training

Split Flange Fire Simulator ST

Split Flange Fire Simulators, Split Flange Gas Fired Prop, Split Flange Gas Fueled Fire Training Equipment, LPG Fires

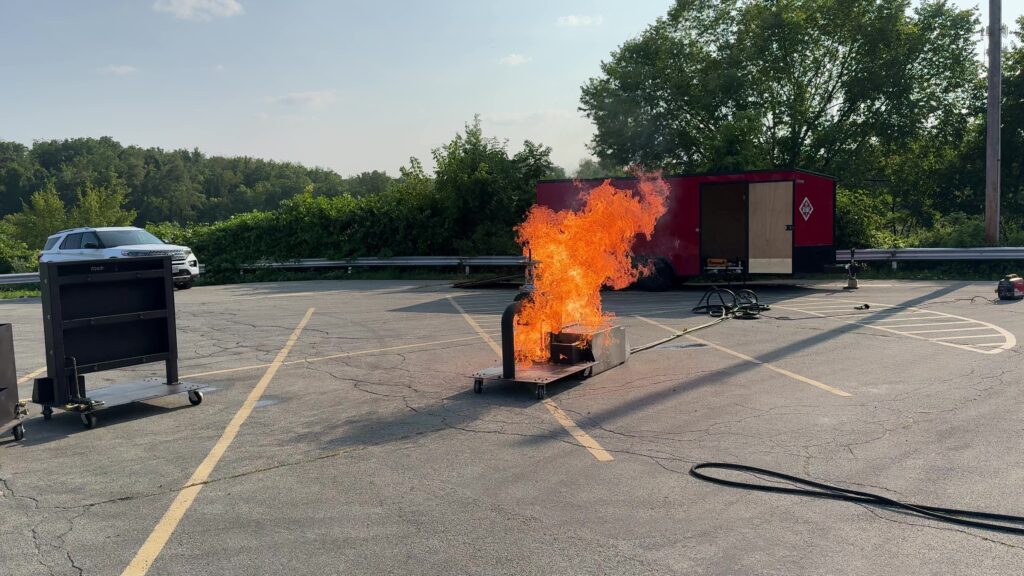

The Split Flange Fire Simulator ST provides essential live fire training using environmentally friendly propane (LPG). The system does not rely on a separate pan assembly. The main fire is generated using the Pilot Module ST (portable pilot igniter – sold separately).

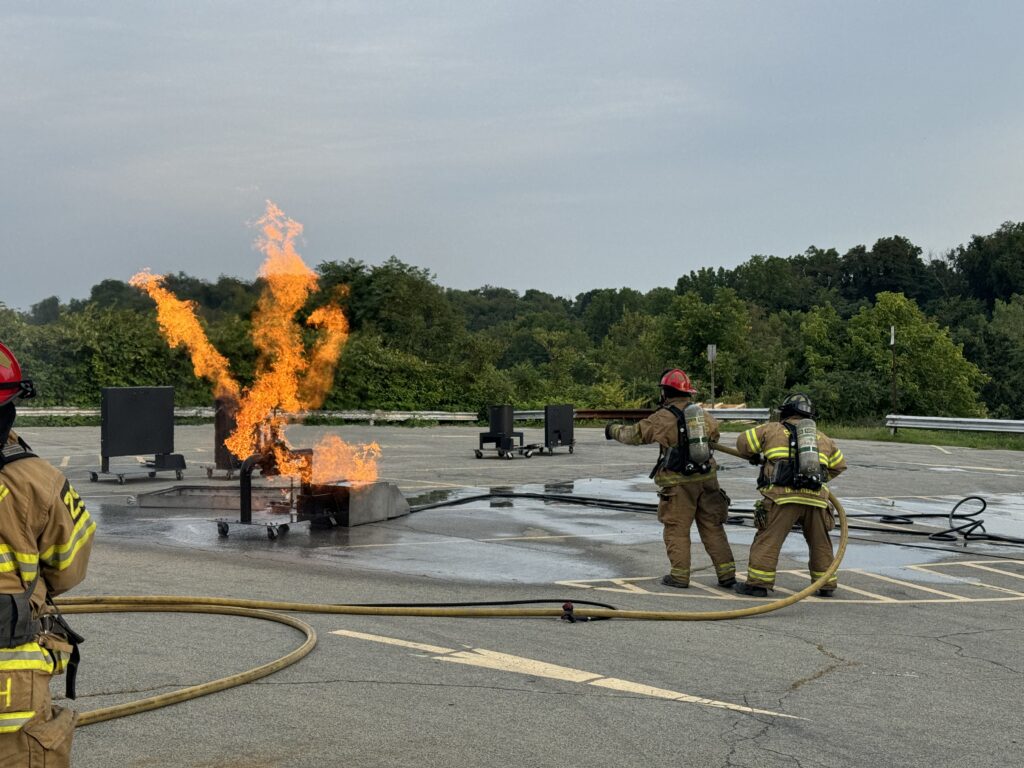

The Split Flange Fire mockup is constructed of durable, heavy-gauge steel and includes a ‘dummy’ shut-off. The Split Flange prop provides a fire originating from a cracked/leaking pipe flange. A water-leak effect can be incorporated for added realism.

The mockup can be located in a single location, it can be moved around on-site using the included high quality steel casters, or the asset can be shared around a region using an optional transport trailer. All burners are constructed of corrosion-resistant stainless steel and all components are approved and designed for the environment.

The ST model is cost-effective and versatile. It features two-stage vapor and liquid main fires. It delivers 4,500,000 to more than 60,000,000 btu/hr for each training fire with all fire and flame height adjustments controlled from the integrated Wireless controller.

All Symtech Live Fire Simulators are fully compliant with NFPA 1402, Standard on Facilities for Fire Training and Associated Props.

The system includes an industry standard warranty and operation and maintenance (O&M) training.

Optional equipment includes a water-leak effect, portable power generator, SS upgrade, smoke generation system, sound generator, and a full line of self-sufficient transport trailers.

See also:

NFPA Compliant
60,000,000+ BTU/hr
Variable Flame Height
Wireless Controls
Single Fire
Portable Burner

Dual Split Flange Fire Simulator ST-PRO

The Dual Split Flange Fire Simulator ST-PRO builds on the ST platform, providing advanced live fire training. Fires are fueled using environmentally friendly propane (LPG). The system does not rely on a separate pan assembly. Fully integrated, independently controlled burners along with a water control valve provides optimal control of each individual scenario, including:

  • Primary Split Flange Fire
  • Secondary Split Flange Fire
  • Fuel (Water) Leak Effect

The Dual Split Flange Fire mockup is constructed of durable, heavy-gauge steel with a functioning shut-off that when secured, shuts off the training fires. The Dual Split Flange prop incorporates multiple fires originating from cracked/leaking pipe flanges, allowing instructors to change the point of origin. An integrated water-leak effect is included for added realism.

The mockup can be located in a single location, it can be moved around on-site using the included high quality steel casters, or the asset can be shared around a region using an optional transport trailer. All burners are constructed of corrosion-resistant stainless steel and all components are approved and designed for the environment.

The Fire Simulator ST-PRO model is set apart by its ability to create progressive fire scenarios, where fires spread and grow at the command of the ignition officer utilizing the included Wireless remote.

Like the ST model, the Fire Simulator ST-PRO model provides two-stage vapor and liquid main fires. It delivers 4,500,000 to more than 60,000,000 btu/hr for each training scenario with all fire and flame height adjustments controlled from the integrated Wireless controller.

All Symtech Live Fire Simulators are fully compliant with NFPA 1402, Standard on Facilities for Fire Training and Associated Props.

The system includes an industry standard warranty and operation and maintenance (O&M) training.

Optional equipment includes a portable power generator, SS upgrade, smoke generation system, sound generator, and a full line of self-sufficient transport trailers.

See also:

NFPA Compliant
60,000,000+ BTU/hr
Variable Flame Height
Wireless Controls
Multiple Fires
Integrated Burners
