Hoseline Fire Simulator ST

Hoseline Fire Simulator ST
Hoseline Fire Simulator ST
Hoseline Fire Simulator ST

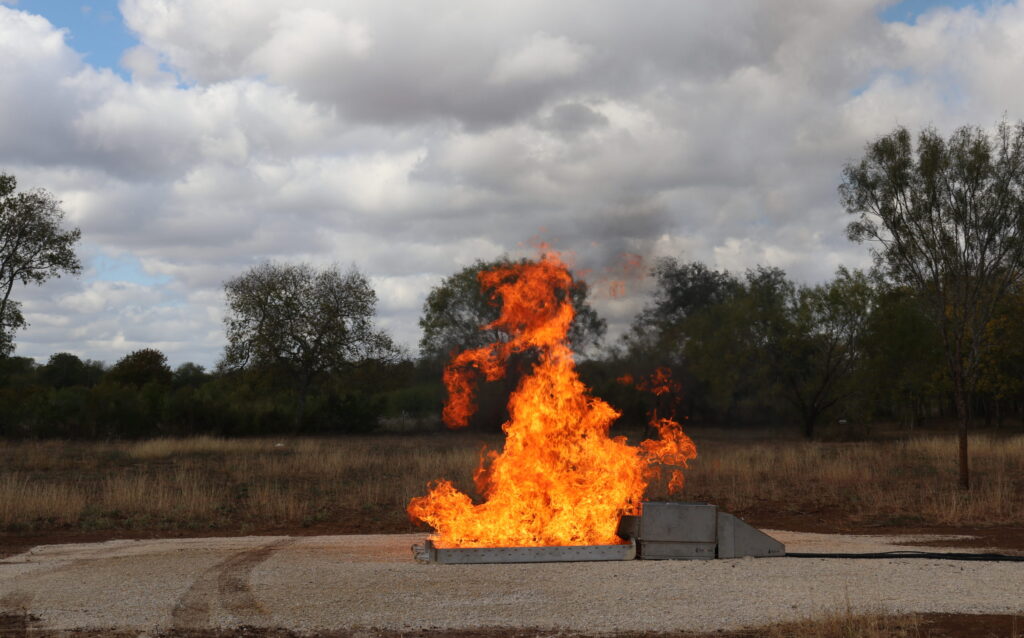

The Hoseline Fire Simulator ST provides essential live fire training using environmentally friendly propane (LPG). It’s versatile, portable, and perfect for both hose line and fire extinguisher training.

The system consists of the following main components:

  • Pilot Module ST
  • Burn Pan ST
  • Integrated Wireless Remote

The Pilot Module ST and Burn Pan ST are both constructed of durable, heavy-gauge stainless steel. The Pilot Module ST is water-cooled to protect internal components and extend its useful life.

The Hoseline Fire Simulator ST can be located in a single location, it can be moved around on-site on its high-quality steel wheels, or the asset can be shared around a region using an optional transport trailer. All burners are constructed of corrosion-resistant stainless steel and all components are approved and designed for the environment.

The Fire Simulator ST model is cost-effective and versatile. It features two-stage vapor and liquid main fires. It delivers 4,500,000 to more than 60,000,000 btu/hr for each training fire with all fire and flame height adjustments controlled from the integrated Wireless controller.

All Symtech Live Fire Simulators are fully compliant with NFPA 1402, Standard on Facilities for Fire Training and Associated Props.

The system includes an industry standard warranty and operation and maintenance (O&M) training.

Optional equipment includes a multi-control podium (to operate multiple props from one location), portable power generator, and a full array of individual live fire props that interface with the Pilot Module ST and/or Burn Pan ST.

See also:

NFPA Compliant
60,000,000+ BTU/hr
Variable Flame Height
Wireless Controls
Single Fire
Portable Burner
