Interior Simulators

Intense.

Repeatable.

NFPA-Compliant.

Interior Fire Training

Structural Fire Simulator ST

Double Bed Burn Prop LPG — Fire Simulator ST Queen Bed Prop

The Structural Fire Simulator ST provides essential live fire training using environmentally friendly propane (LPG) or natural gas (NG) in the vapor state. All fires include variable flame control, integrated smoke generation, and premium NFPA-compliant safety systems.

Fire Simulator ST burn prop mockups are constructed of durable heavy-gauge steel ensuring extended prop life. All fires include an integrated monitored and interlocked flame pilot ignition system. Wireless controls enable seamless control of fires, smoke and effects such as a dramatic ceiling rollover.

Symtech offers fixed burn props mockups as well as interchangeable designs to provide increased versatility in training exercises. Variable flame range puts control of fire dynamics in the palm of your hand. All burners are constructed of corrosion-resistant stainless steel and all components are approved and designed for the environment.

The Structural Fire Simulator ST is cost-effective and versatile. It delivers 4,500,000 btu/hr for each training fire with unburned gas, temperature and ventilation all monitored and controlled by a programmable logic controller (PLC) enabling you to focus on training!

All Symtech Live Fire Simulators are fully compliant with NFPA 1402, Standard on Facilities for Fire Training and Associated Props.

The system includes an industry standard warranty and operation and maintenance (O&M) training.

Optional equipment includes a rollover, flare-up effect, and sound generator.

See also:

Garage Vehicle Burn Prop LPG — Fire Simulator ST Garage Car Prop

Sofa Burn Prop LPG — Fire Simulator ST Sofa Prop

Bed Burn Prop LPG — Fire Simulator ST Twin Bed Prop

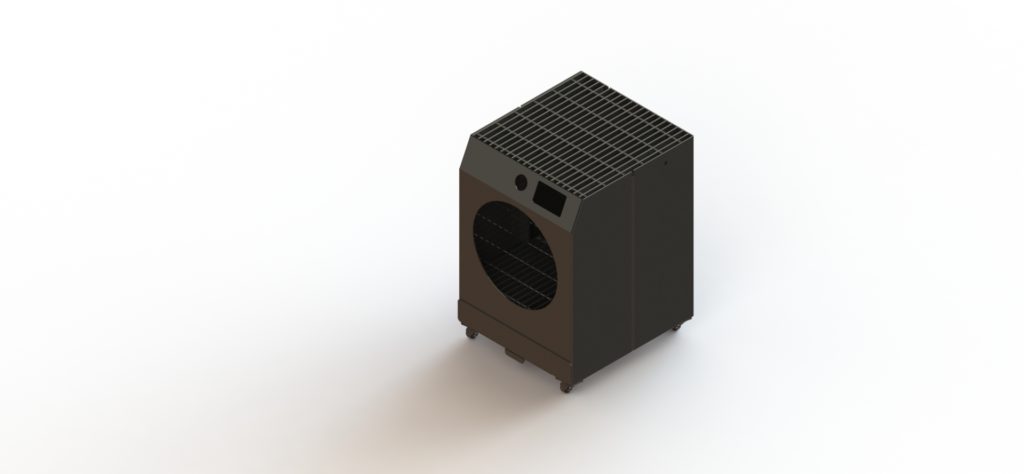

Clothes Dryer Burn Prop LPG — Fire Simulator ST Clothes Dryer Prop

Boiler Furnace Burn Prop LPG — Fire Simulator ST Boiler / Heater Prop

Hallway Rollover Burn Prop LPG — Hallway Rollover Fire Simulator ST

Ship/Maritime Engine Burn Prop LPG — Fire Simulator ST Marine Engine Prop

Flange Burn Prop LPG — Fire Simulator ST Flange Prop

Desk - ISO — Fire Simulator ST Office Desk Prop

Copier - ISO — Fire Simulator ST Copier Prop

Sofa - ISO — Fire Simulator ST Loveseat Prop

NFPA Compliant

4,500,000+ BTU/hr

Variable Flame Height

Wireless Controls

Single Fire & Optional Effect Fires

Remote Diagnostics

Structural Fire Simulator ST-PRO

Living Room - ISO — Fire Simulator ST-Pro Living Room Props

The Structural Fire Simulator ST-PRO builds on the ST platform, providing advanced live fire training. Fires are fueled using environmentally friendly propane (LPG) or natural gas (NG). Fully integrated, independently controlled burners enable extension to one or more separate fires within the same training space.

Examples include:

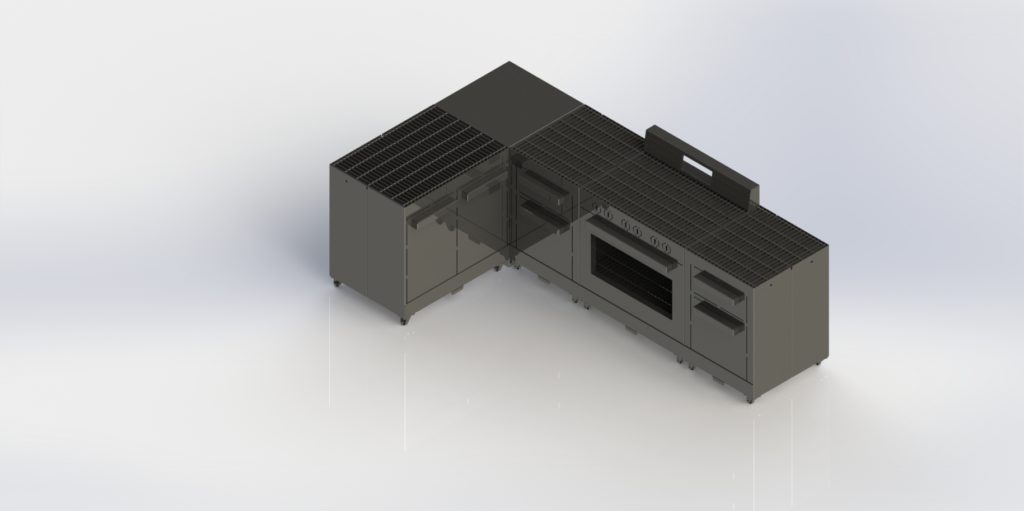

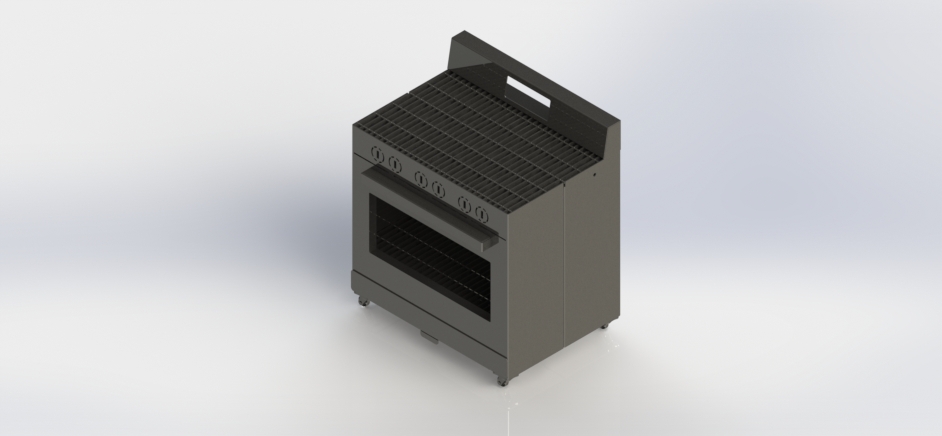

Kitchen Prop w/ Cabinet and/or Countertop Extension
Bedroom Fire w/ End Table and/or Window Fire Extension
Living Room w/ Ottoman, End Table and/or Arm Chair Extension

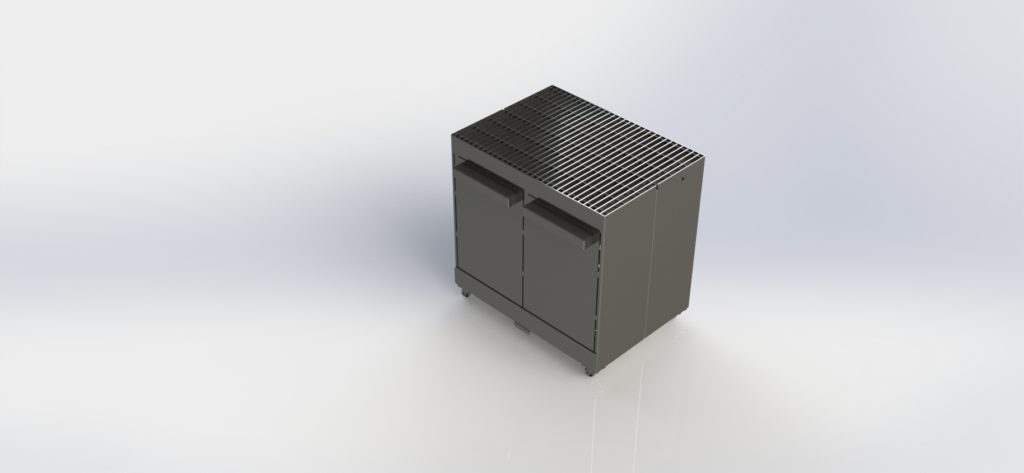

Office Desk w/ Storage Cabinet and/or Copier Extension
Rollover Simulation

Dozens of standard off-the-shelf configurations are available and we can customize a configuration to deliver endless scenario possibilities. All main fire mockups and extension mockups are constructed of durable heavy-gauge steel ensuring extended prop life. Multi fire scenarios enable instructors to change the point of origin and enable fire growth based on response time and agent application efficacy.

The ST-PRO model is set apart by its ability to create progressive fire scenarios, where fires spread and grow at the command of the ignition officer utilizing the included Wireless remote. Variable flame range or multiple fires in a single training space ensures varied training to challenge personnel of all experience levels.

The ST-PRO model delivers 4,500,000 btu/hr for each main fire and extension fire.

All Symtech Live Fire Simulators are fully compliant with NFPA 1402, Standard on Facilities for Fire Training and Associated Props.

The system includes an industry standard warranty and operation and maintenance (O&M) training.

Optional equipment includes rollover, flare-up effect, extensions fires, and sound generator.
